TOTAL LINE UP : PDF FILE DOWNLOAD

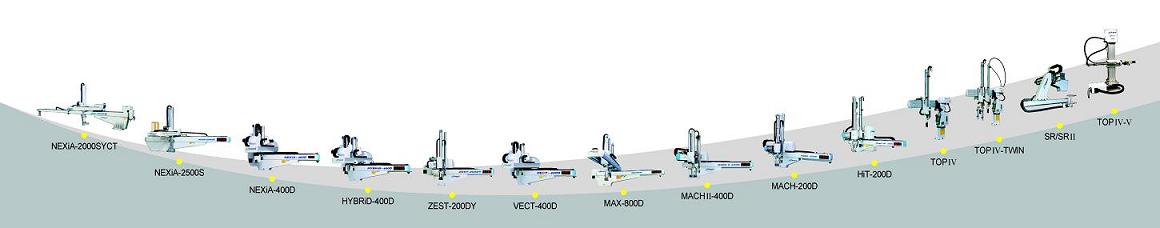

  • SERVO ROBOT LINE ( 3 ~ 7 Axis )

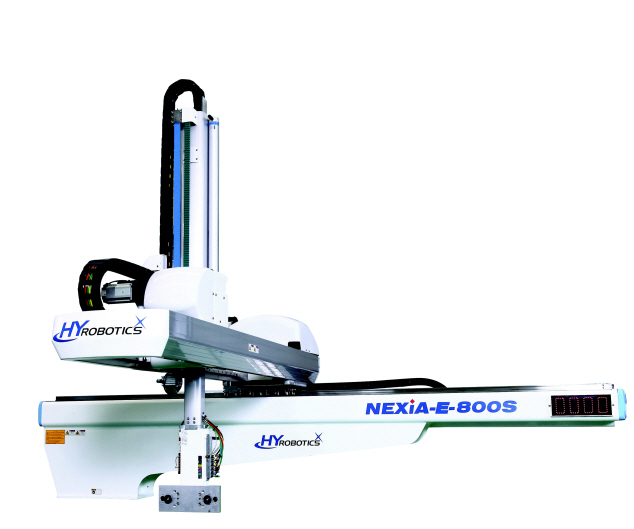

ZEST / ZEST-II Series NEXIA Series  NEXIA-W Series  EPIK and UNIK Series Robot

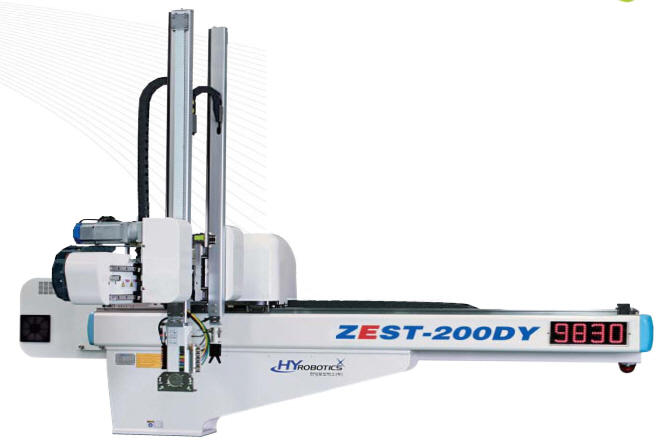

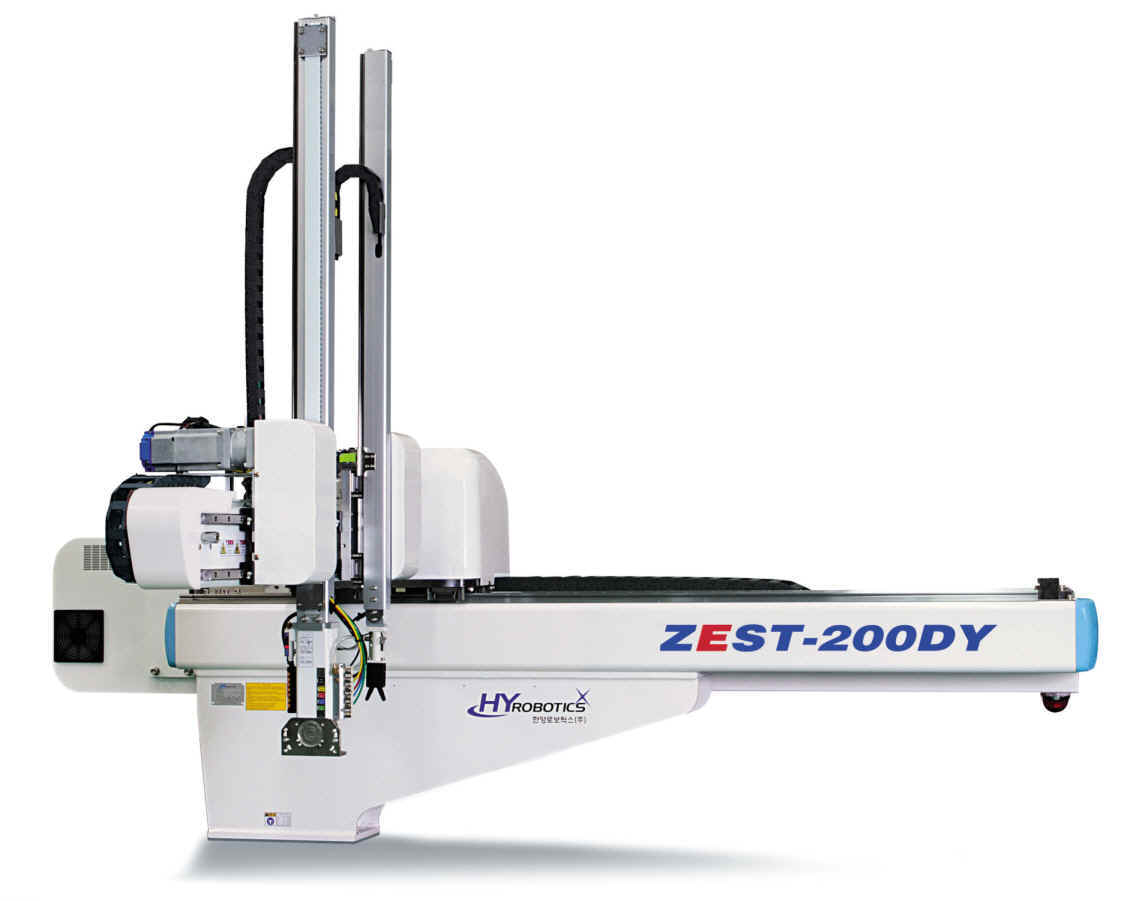

    Full servo robot designd for molding machine from 30 to 950 tons. Available in Operator, Non Operator configurations for suggested payload ranging from 12 lbs to 44 lbs. Mechanism features non-telescoping vertical arm for ZEST, telescopin for ZEST-II Series. ( Light application ) - HYNC-700 Controller

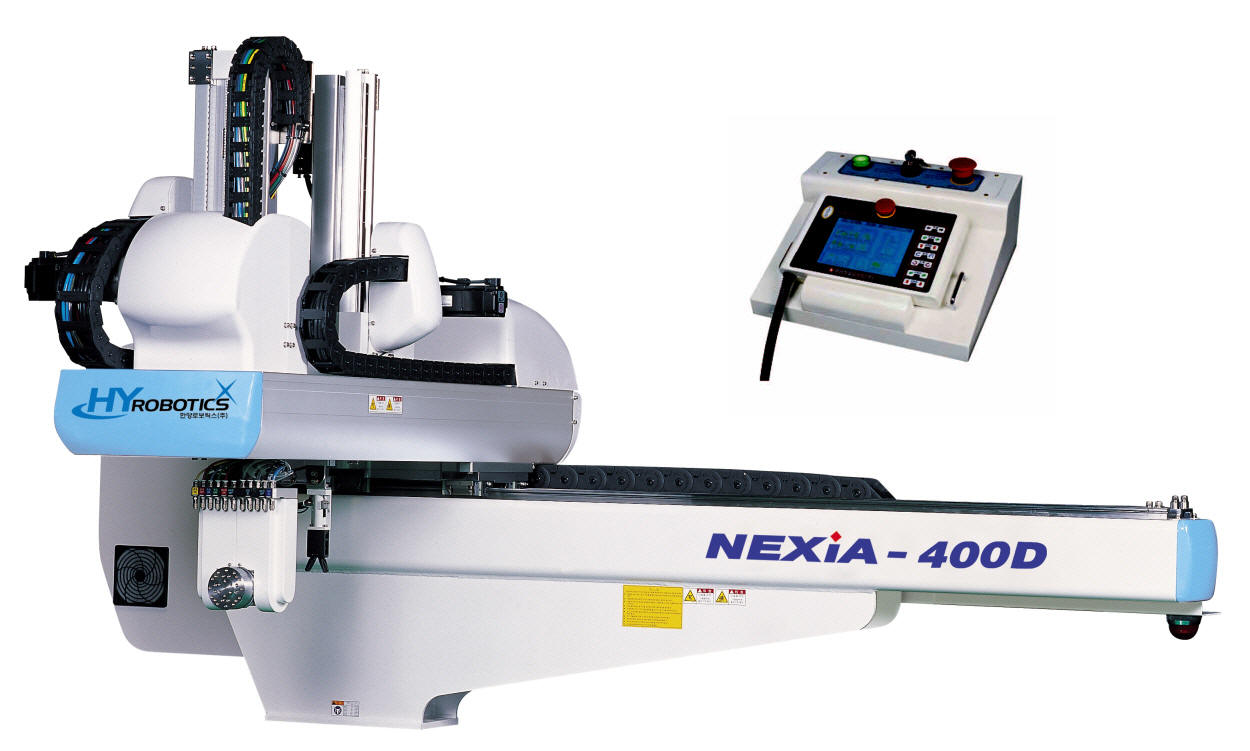

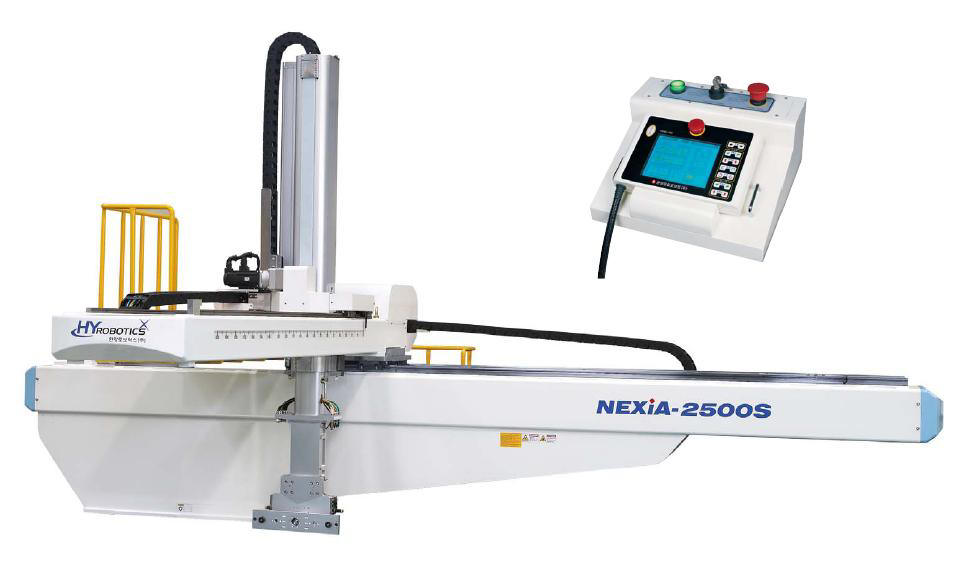

   Our top of the line full featured, full servo robot for molding machines from 100 to 4000 tons. Available in Operator, Non Operator and "T" mount configurations with payload from 12 lbs to 180 lbs. Standard telescoping vertical arm reduced overhead requirements.  - HYNC-700 Controller

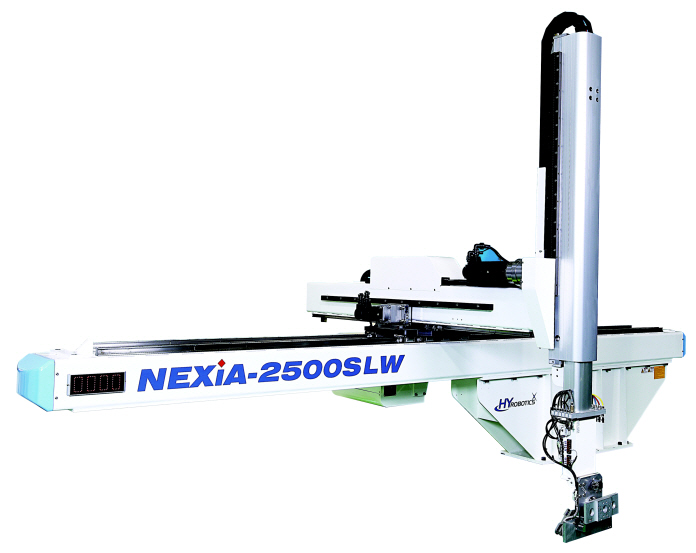

   NEXIA-W Series is a full featured, flat front, style full servo robot for molding machines from 600 to 3000 tons. Available in Operator, Non Operator and "T" mount configurations with payload from 60 lbs to 180 lbs. Standard telescoping vertical arm reduced overhead requirements and flat front style enables longer parts handling option. - HYNC-700 Controller

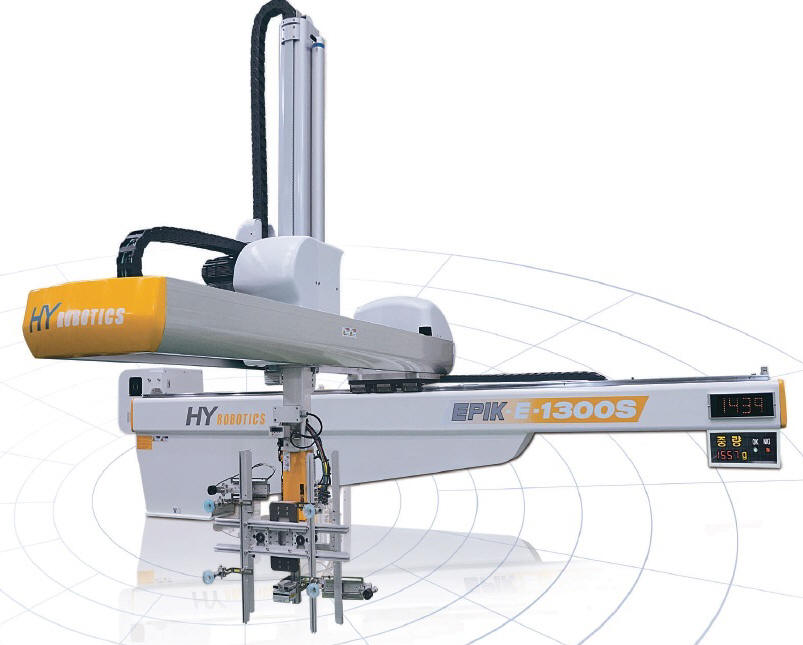

   EPIK and UNIK series Robot is a full featured,  full servo robot for molding machines from 100 to 3000 tons. Available with KEBA controller based system. 7" Color Touch screen , Vibration Suppressing software, Free Y-Axis movement for Parts ejected from the mold. High-level languge for advanced programming function- Keba Controller


  • SERVO ROBOT CONTROLLER




HYNC-700 Controller   KEBA Controller

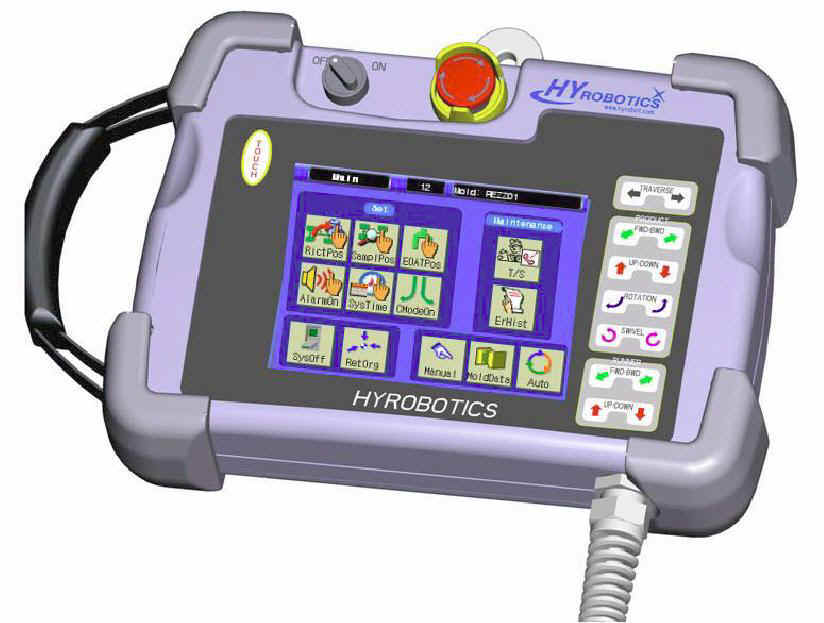

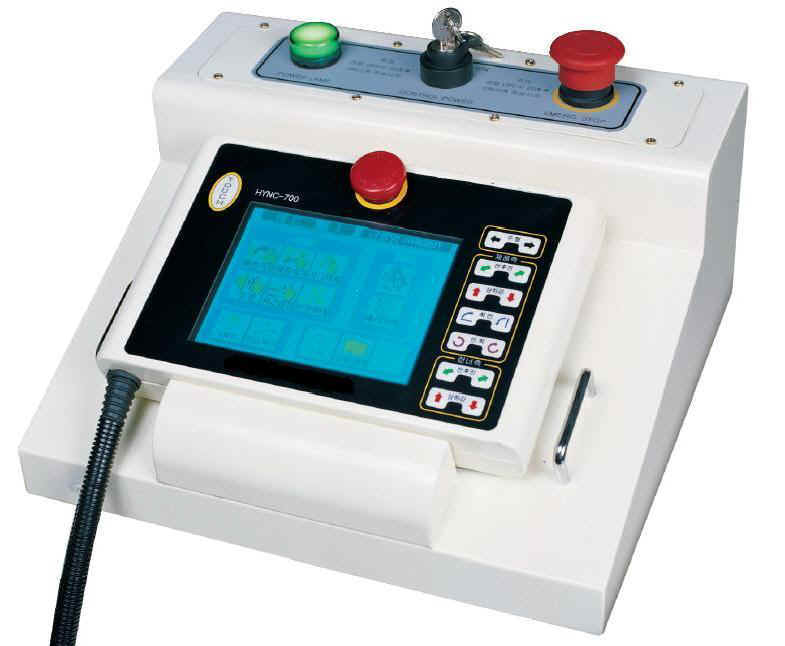

   Hyrobotics 3 Axis ~ 7 Axis Servo Robot Controller. Specially designed for plastics injection molding take out application with simple step with flexible to add position, motion, user output, user input for 2ndary automation. Easy to use gate cutting, insert molding, hot stamping & in mold label automation. Installed over 5000 units world wide.

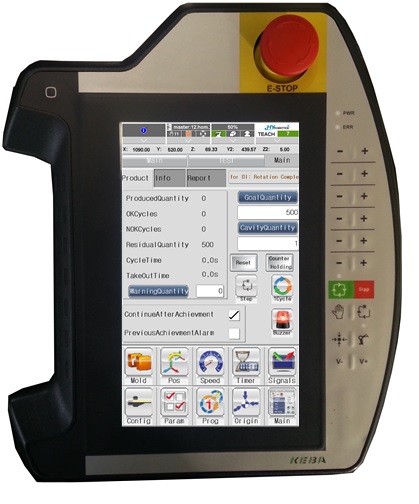

Hyrobotics developed 3 Axis ~ 7 Axis Servo Robot Controller with KEBA controller manufcturing company for plastics injection molding applicaton. This controller features include PC programming, line by line flexible programing on the top of icon base programming , vibration surpress motion with kick free motion.

  • WEIGHT, TEMPERATURE MEASUREMENT SYSTEM

MUGE-IN SYSTEM TEMP-IN SYSTEM PNEUT-IN SYSTEM TOTAL CONVERSION SYSTEM

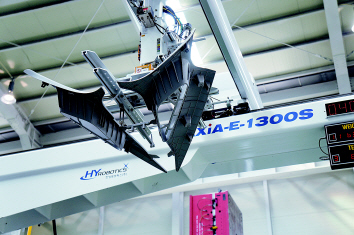

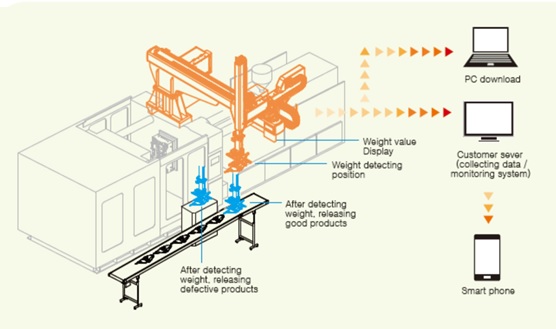

HYRobotics Muge-in System is measuring weight of each cycle of molded products with Robot arm ( Load cell embeded robot arm.)

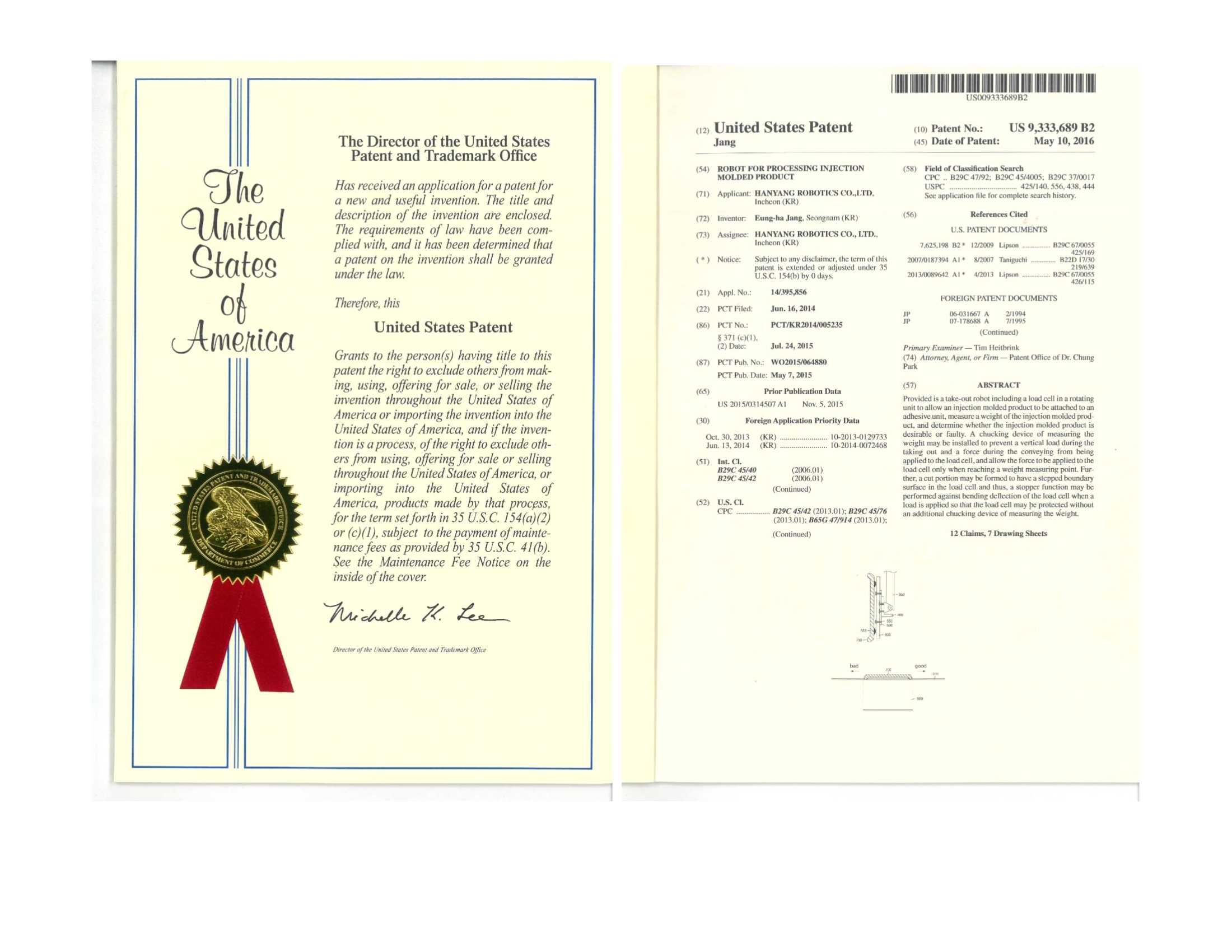

United States Patent

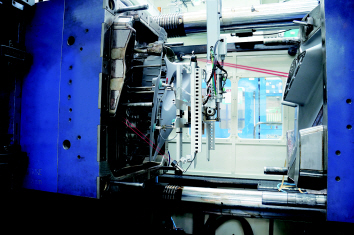

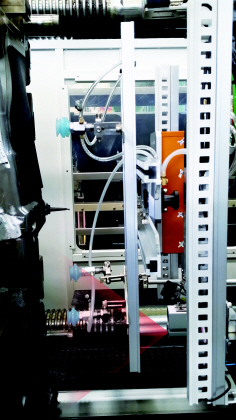

  HYRobotics Muge-in System is measuring Mold surface Temperature variance of each cycle of production to detect any change of molding enviroment  during production cycle    HYRobotics  PNEUT-IN System eliminate static with mold opening before robot arm take parts from mold and also will remove static after removal of parts. HYRobotics  Total Conversion system will help plant manager to overview of molding cell including Weight of each molded parts and temperature change of each cycle with cycle data.





  • SERVO-PNEUMATIC ROBOT LINE


  • SWING TYPE SPRUE PICKER LINE

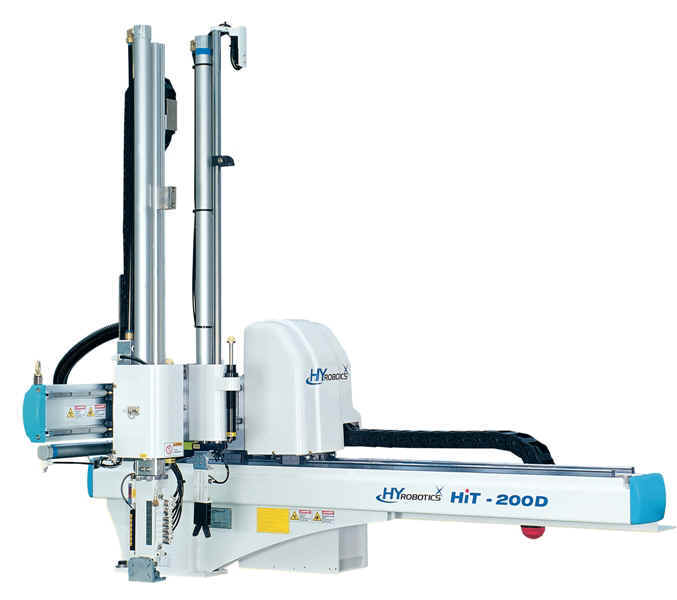

HIT Series

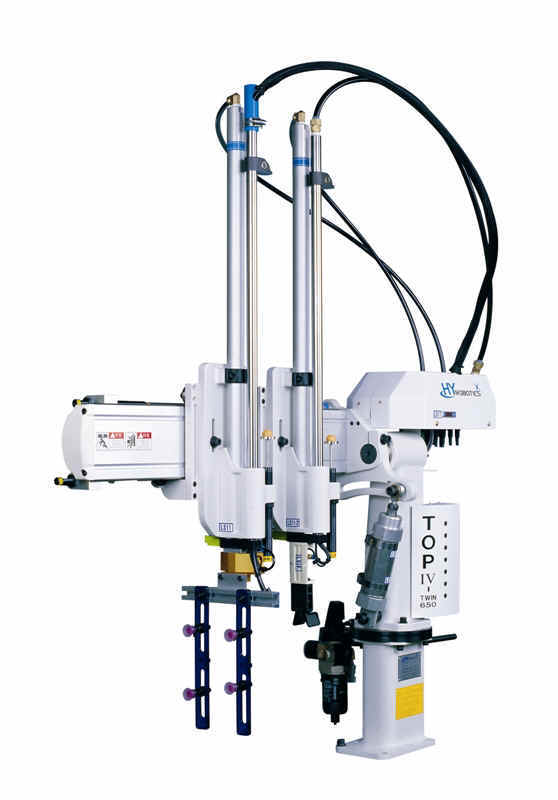

MACH-II SERIES HIT SERIES TOPIV Series Twin Top Series

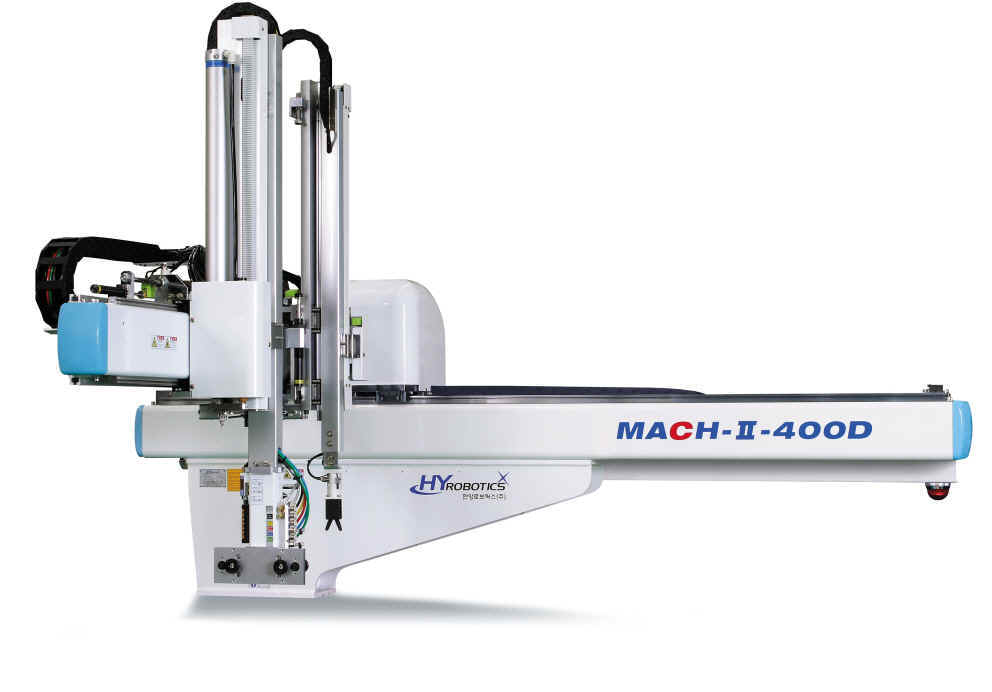

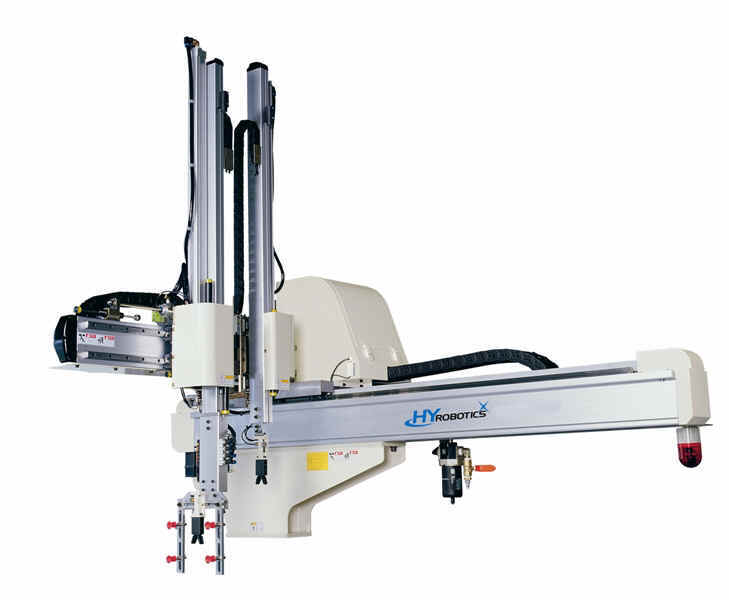

Single Axis Servo/Pneumatic ( Traverse Servo / Kick-descent with pneumatic ) robot for molding machines from 80 to 500 tons. Available in Operator, Non Operator configurations with payload from 12 lbs to 22 lbs. Standard telescoping vertical arm reduced overhead requirements.

Single Axis Servo/Pneumatic ( Traverse Servo / Kick-descent with pneumatic ) robot for molding machines from 50 to 250 tons. Available in Operator, Non Operator configurations with payload from 5 lbs to 11 lbs. Non Telescroping Robot vertical arm is standard.

Pneumatic, Sprue Picking Swing Type Robot desinged for molding machines 30 to 400 tons. Simple Configuration for operator and non operator arrangements. Release sprue or parts on inclined conveyor with XC-Vacuum option. CE Certified electric component.

Pneumatic, Sprue Picking Swing Type Robot desinged for 3 plate mold, molding machines 30 to 400 tons. Easy to set to operator and non operator arrangements. Sprue or parts released on inclined conveyor with XC-Vacuum option. CE Certified electric component.



  • SIDE TAKE OUT ROBOT

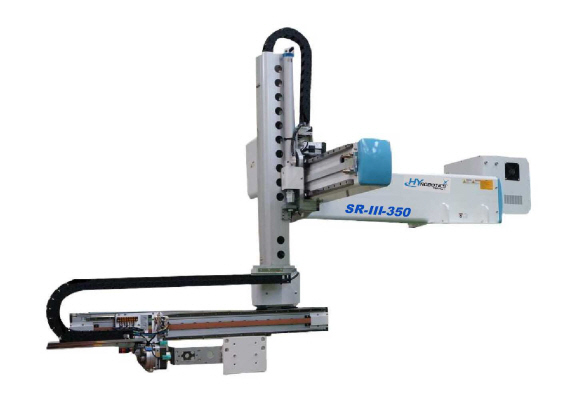

SRIII- SERIES Side Robot Series : PDF DOWNLOAD SR-II Side Robot Series : PDF DOWNLOAD TOPIV-V Series : PDF DOWNLOAD

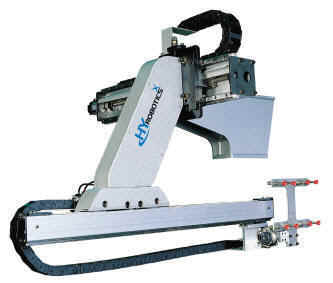

Robust side take out robot for low ceiling Robot . 3 Axis servo Robot with pneumatic wrist. High speed take out robot for thin wall molding ( CD, DVD Case, Disposable Plastics Cups). 3 Axis servo Robot with pneumatic wrist.

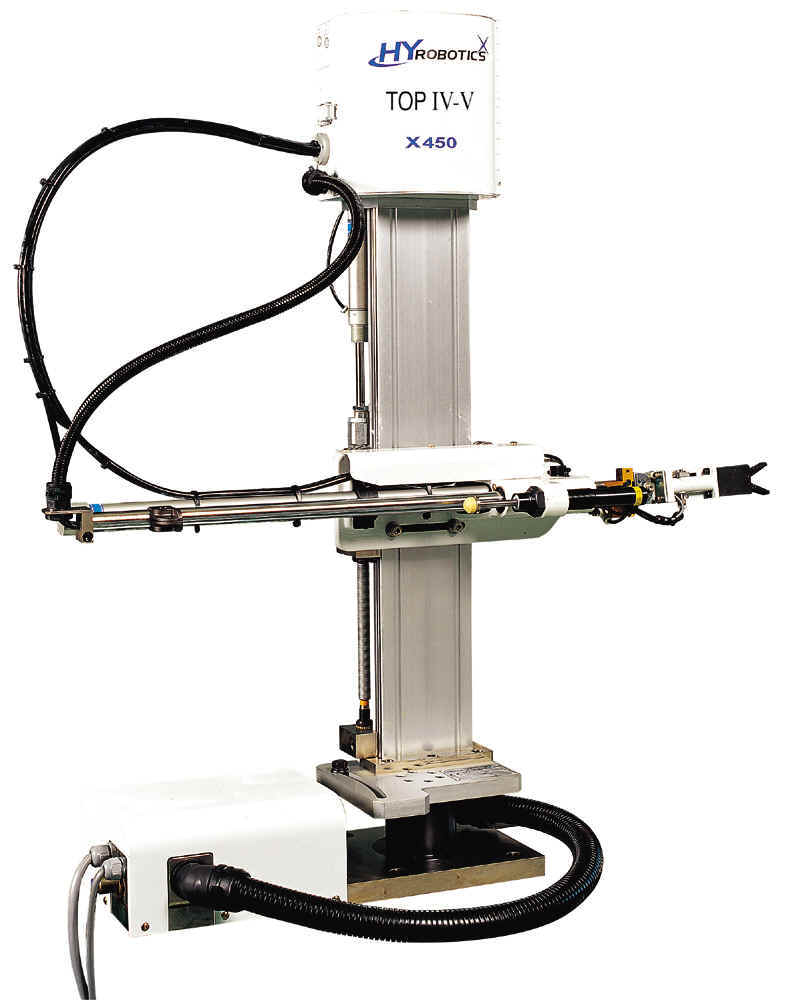

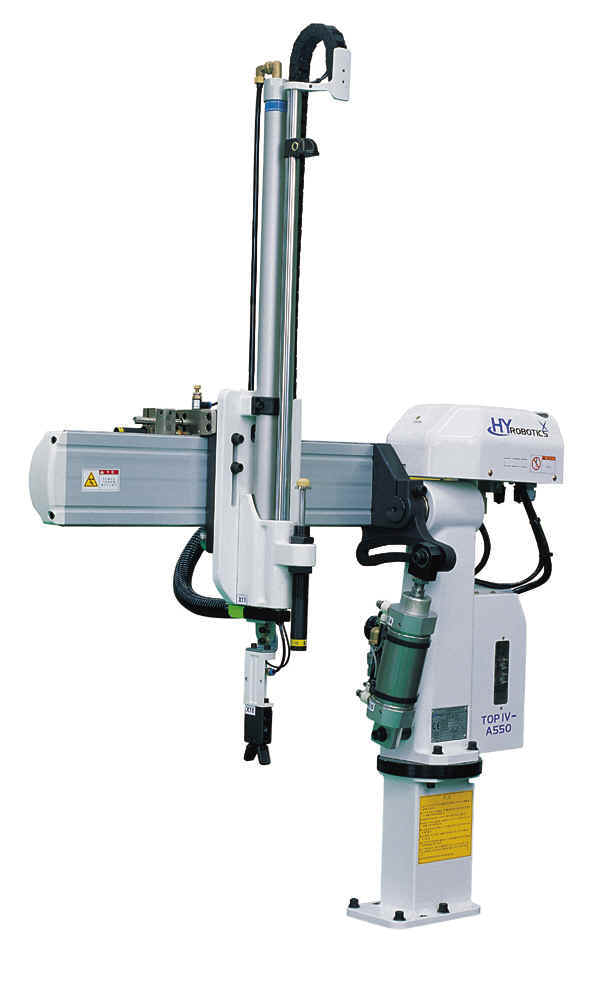

Pneumatic, Sprue-Picking Robot for Vertical molding machine from 30 to 250 tons. TOPIV series features a robust design with simpliefied configuration.

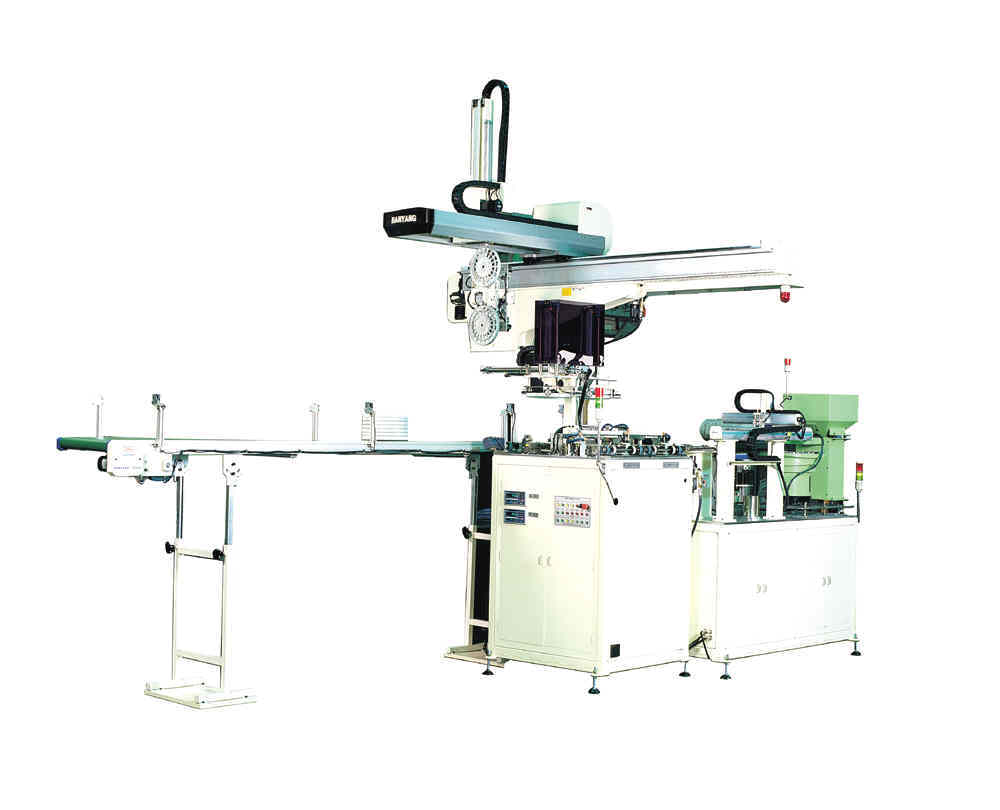

  • CUSTOM AUTOMATION

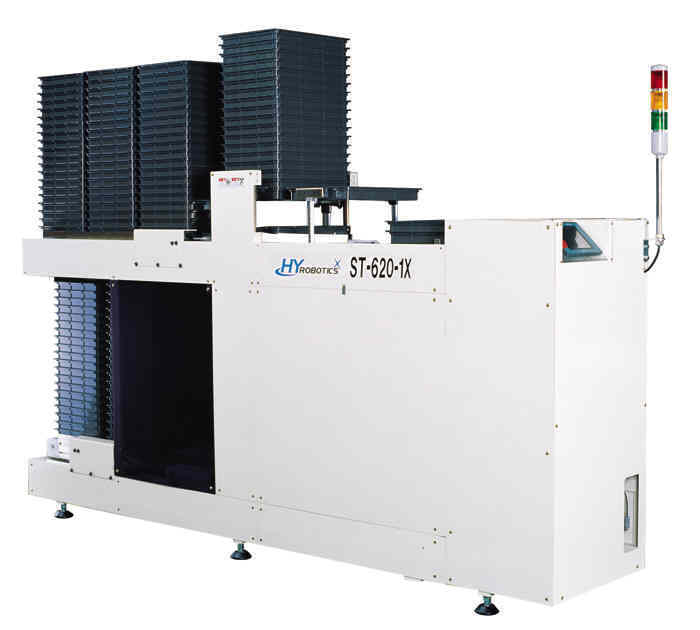

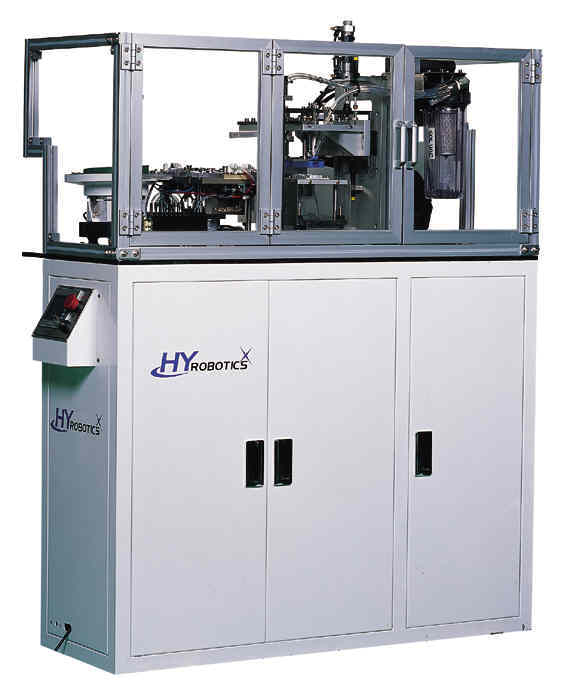

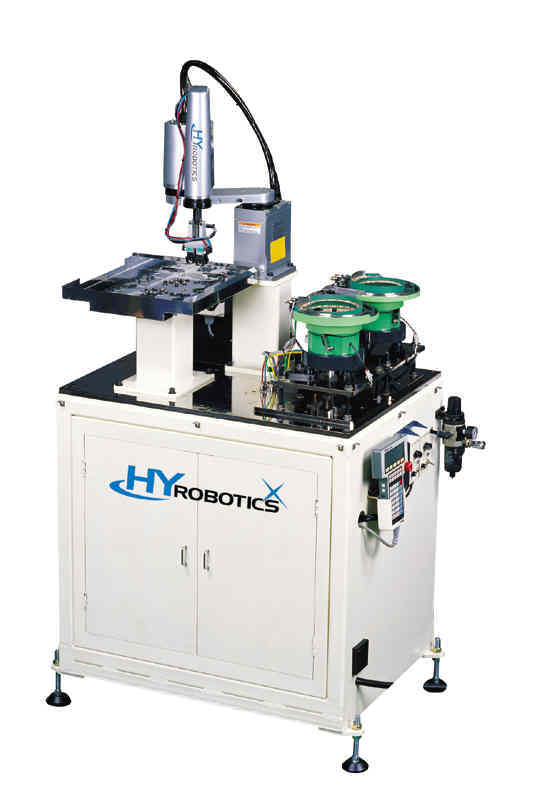

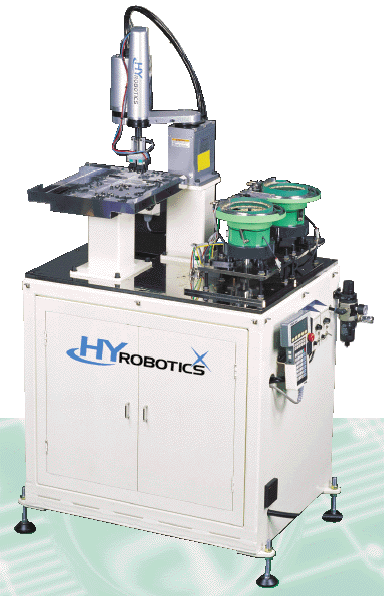

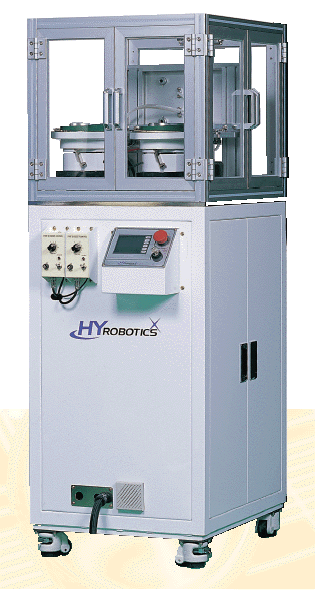

Insert Supply Machines : PDF DOWNLOAD Gate Cutting Machines : PDF DOWNLOAD Stacking Machine : PDF DOWNLOAD
